About us
Be a security guard, we are more attentive!!!
Zhangzhou Weizhi Mechanical and Electrical Technology Co., Ltd. is located in Zhangzhou, the capital of rolling shutter motor production. The company mainly produces various types of chain type external hanging rolling shutter motor: AC 300 kg, 400 kg, 500 kg, 600 kg, 800 kg, 1000 kg, 1300 kg, 1500 kg, 2000 kg. AC and DC reserve power supply 300 kg, 500 kg, 600 kg, 800 kg, 1000 kg. and the corresponding remote control, AC reserve power supply, infrared radiation device, rebound module in case of resistance and so on.
Technical Parameters of AC Door Winder
Model WS-600-1P
Input voltage AC220V 50Hz
Motor power 300W
Elevation Height 6M
Lifting force 600 kg
Output Speed 5.3 RPM
Output Torque 412N.m
Continuous working time is 7 minutes.
Ambient temperature range - 20 + 50.
Scope of Application of AC Door Winder
Applicable to shops, shopping malls, banks, warehouses, factories, garages and other kinds of rolling gates.
Performance Characteristics of AC Door Winder
1. Long life, easy to install and maintain.
2. Mechanical limit drive, accurate and reliable positioning, safe opening and closing
3. When power failure occurs, the hand zipper lifts and lowers the curtain door, while the hand-pressed clutch rod closes the curtain door quickly by means of self-weight falling. Electricity storage device can also be equipped.
4. The motor is equipped with an overheat protector, which has the function of overheat protection. When the motor is running, when the temperature reaches 120 degrees, it will stop running automatically.

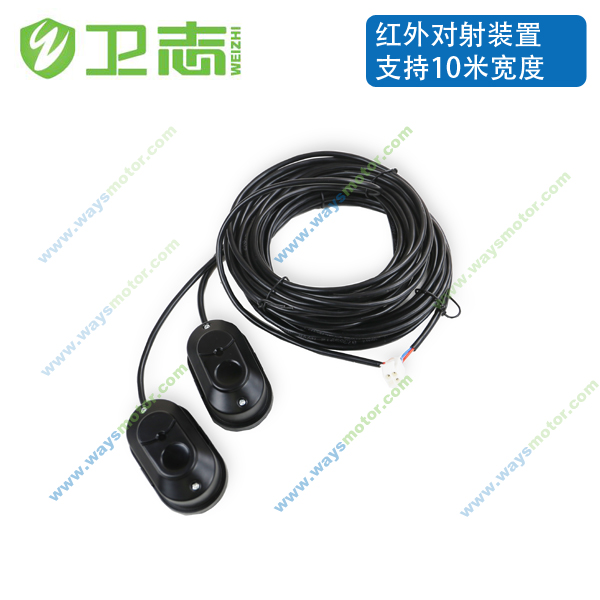

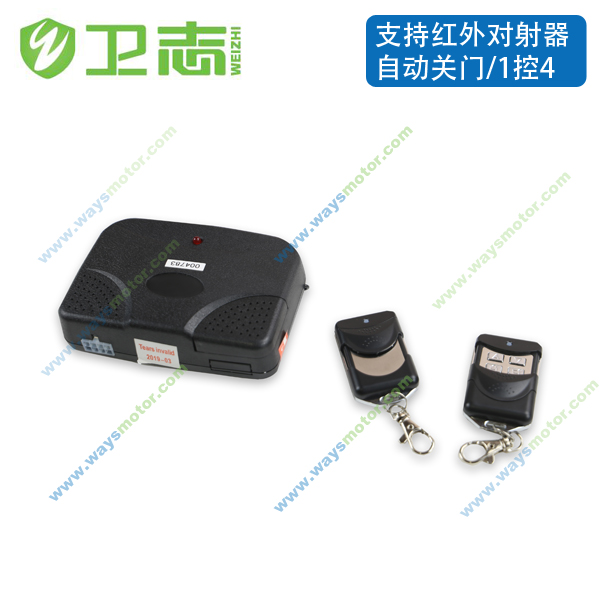

5. It can be equipped with wireless remote control, infrared transmitter, rebound device in case of resistance, and the function of mobile phone opening and closing door.
Key words: rolling gate motor, rolling gate remote controller, rolling gate accessories
